Brand Name : XiTan Equipment
Model Number : GL-6000S
Certification : CE; ISO9001:2015
Place of Origin : China
MOQ : 1set
Price : Negotiation
Payment Terms : T/T
Supply Ability : 200 set/year
Delivery Time : 7-120 days
Packaging Details : Container
Product Name : Construction Drilling Rig
Type : Full Hydraulic, Crawler, Rotary, Jet Grouting
Condition : New
Power Type : Electric/Diesel
Dimension(L*W*H) : 5.6m×2m×2.93m
Drill Diameter (mm) : 110-400mm
Drill Depth (m) : 50-200m
Drilling Angle : 360
Applicable Industries : Construction works,ground improvement
Pile Diameter : 2.2 m
Supplier : Manufacture
Voltage : As Requirement
GL-6000S Hydraulic DTH 110r/Min 55kW Construction Drilling Rig
Feature:
Powerful
Top-drive head driven by hydraulic, stepless speed regulation, high efficiency, and low labor intensity.
Variable hydraulic system with load feedback, low energy consumoment.
Satiable for jet grouting technic.
Top-drive head has a wide range of rotary speeds and meets varying layers,s, and drilling technology.
With track chassis, easy and speedy to move.
With rotary support.
A longer stroke of the top-drive head reduces auxiliary operation time.
Compact structure, centralized operation, easy and safe.
With display unit.
Drilling Method:
1. Carbide bits drilling.
2. Rotation drilling.
3. Auger drilling.
4. Drilling with a pneumatic DTH hammer.
5. Pneumatic DTH hammer and following-up casing drilling.
6. Extensional functions are rotary jet grouting, swivel jet grouting, or fixed jet grouting drilling.
Construction Application:
1. Tunnels Pipe shed support.
2. Rock and soil anchoring.
3. Blasting holes.
4. Embankment and dam reinforcement.
5. Drilling holes for geothermal energy.
6. Hydrological wells.
7. Foundation pile construction.
8. Geological disaster treatment and other engineering fields.
Optional power:
1. Diesel power
2. Electric motor
3. Diesel electric dual power
Technical Data:
Mode | GL6000S | |||
Motor | Motor 55kW | Diesel 56kW | ||
Weight | 7.9t | |||
Size | 5600mm×2000mm×2930mm | |||
Speed | High 5.06 km/h | Low 2.6km/h | ||
Climbing Capacity | 20° | |||
Diameter Pile | ||||
Max Diameter | Max 2.2m | |||
Max Depth | 200m | |||
Power Head | ||||
Feeding Stroke | 3m | |||
Feeding Force | 58kN | |||
Rotation Speed | Low 8~50.6r/min | |||
High 16~101r/min | ||||
Lifting Power | 110kN | |||
Torque | 3000N.m~6000N.m | |||
Borehole | ||||
Depth | 50~200m | |||
Diameter | 110~400mm | |||
Drill pipe (diameter x length) | 60~89×2500mm | |||
Horizontal Hole Height | High 3450mm | Low 338mm | ||
Column | ||||
Sliding Stroke | 1200mm | |||
Pitch Angle | 120° | |||
Swing Angle | 0°~90° | |||
Drill Arm Pitching Angle | Elevation angle 35° | Pitch Angle 16° | ||
Hydraulic System | ||||
Rated Flow | Main Pump | 100L/min | ||
Sub-pump | 30L/min 15L/min | |||
Rated Pressure | Main Pump | 21MPa | ||
Sub-pump | 18MPa |
![]() |

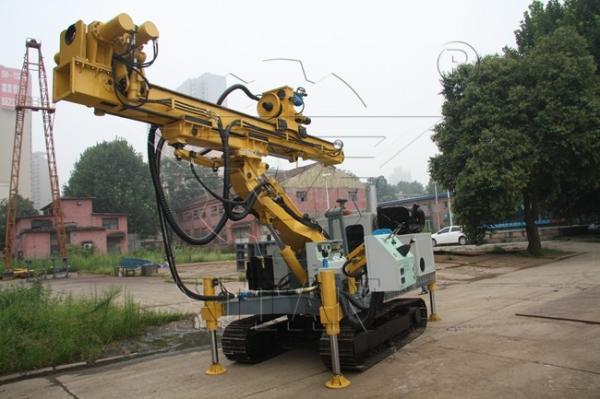

Hydraulic DTH 110r/Min 55kW Construction Drilling Rig Images |
